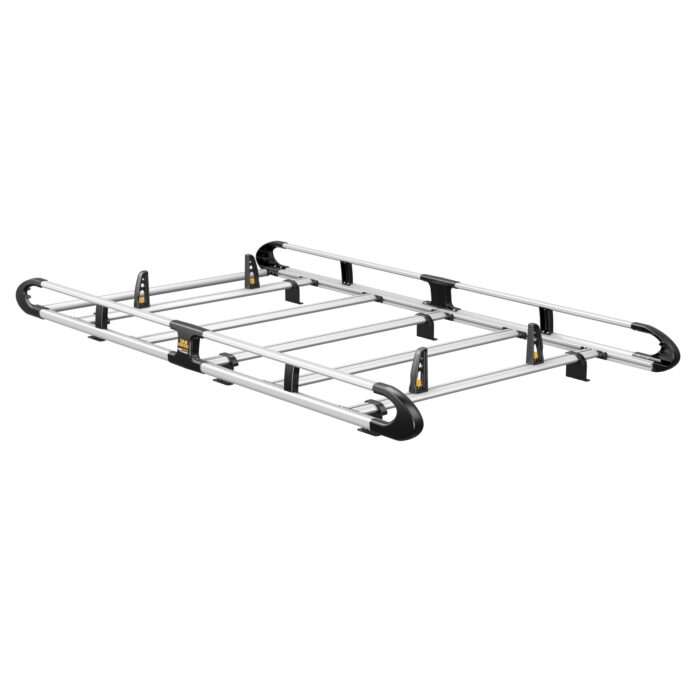

The Nissan Townstar 2022 on Roof Rack – 5-bar ULTIRack+ L1 H1/ L2H1 Twin Door model is a van specific product in terms of design and fitting. Manufactured from lightweight aluminium, this sleek, heavy duty builders rack not only looks the part but does the job.
Aerodynamic profile cross bars to minimise wind noise and drag.
The first of its kind to install a t-slot system within every cross bar. Allowing for the use of load stops, eye bolts and ratchet straps to ensure loads are secured safely to the roof.
One man fit.
8×4 carrying capacity, providing a large and versatile roof space.
Full length rear roller provided, designed for easy loading, and unloading.
2 pairs of FREE load stops provided.
Hard wearing durable plastic end cones, connectors and spacers coasted with UV protection to resist fade.
Top quality at a competitive price.
Crash tested to maximum carrying capacity at 20G.
Designed and made in Britain.
Aluminium extrusion
Steel Brackets
Anodised Aluminium full length rear roller
Length x Width x Height (mm): (L1 2200mm x 1401mm x 175mm, L2 2400 x 1401 x 175mm)
Number of bars: 5
Fitted weight: 25kg
Maximum load carrying capacity: 100kg
Measurements from middle bracket to underside of bar: 73mm
Measurements from middle bracket to top of side channel: 248mm
(Maximum load must be in accordance with the vehicle manufacturer’s load bearing capacity. Please refer to vehicle handbook.)
